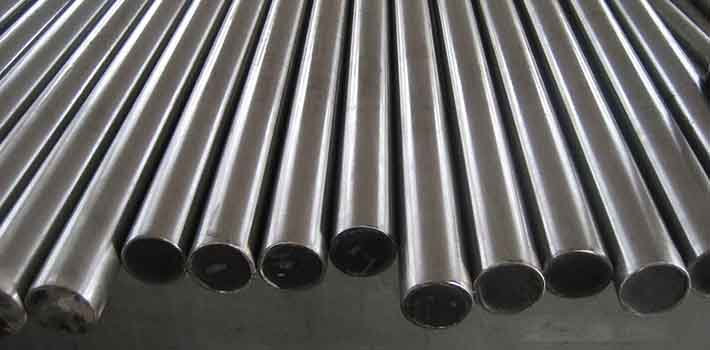

Transmisyon Milleri
Q 2 MM İLE Q 80 MM ARASINDA SOĞUK ÇEKİLMİŞ TRANSMİSYON ÇELİKLERİ
Transmisyon Milleri |
SOĞUK ÇEKME TOLERANSLARI |
Yuvarlaklar |
Çap |
Toleranslar |
mm |
h6 |
h7 |
h8 |
h9 |
h10 |
h11 |
h13 |
1.0 3.0 |
0 / -0.006 |
0 / -0.010 |
0 / -0.014 |
0 / -0.025 |
0 / -0.040 |
0 / -0.060 |
0 / -0.14 |
3.5 6.0 |
0 / -0.006 |
0 / -0.012 |
0 / -0.018 |
0 / -0.030 |
0 / -0.048 |
0 / -0.075 |
0 / -0.14 |
6.5 10.0 |
0 / -0.008 |
0 / -0.015 |
0 / -0.022 |
0 / -0.036 |
0 / -0.058 |
0 / -0.090 |
0 / -0.18 |
11.0 18.0 |
0 / -0.009 |
0 / -0.018 |
0 / -0.027 |
0 / -0.043 |
0 / -0.070 |
0 / -0.110 |
0 / -0.22 |
19.0 25.0 |
0 / -0.011 |
0 / -0.021 |
0 / -0.033 |
0 / -0.052 |
0 / -0.084 |
0 / -0.130 |
0 / -0.27 |
26.0 30.0 |
0 / -0.030 |
0 / -0.021 |
0 / -0.033 |
0 / -0.052 |
0 / -0.084 |
0 / -0.130 |
0 / -0.33 |
32.0 50.0 |
0 / -0.016 |
0 / -0.025 |
0 / -0.039 |
0 / -0.062 |
0 / -0.100 |
0 / -0.160 |
0 / -0.39 |
52.0 80.0 |
- |
0 / -0.030 |
0 / -0.046 |
0 / -0.074 |
0 / -0.120 |
0 / -0.190 |
0 / -0.46 |
85.0 120.0 |
- |
0 / -0.035 |
0 / -0.054 |
0 / -0.087 |
0 / -0.140 |
0 / -0.220 |
0 / -0.54 |
125.0 150.0 |
- |
0 / -0.040 |
0 / -0.063 |
0 / -0.100 |
0 / -0.160 |
0 / -0.250 |
- |
|
